Seaport traffic light with remote

Traffic light in ports

Seaport traffic lights are located at the entrance and exit of ports to provide information and guide ships to their destination.

They may indicate that:

• the port is closed
• passage is prohibited
• passage is permitted in one direction or both directions

Visible and bright equipment

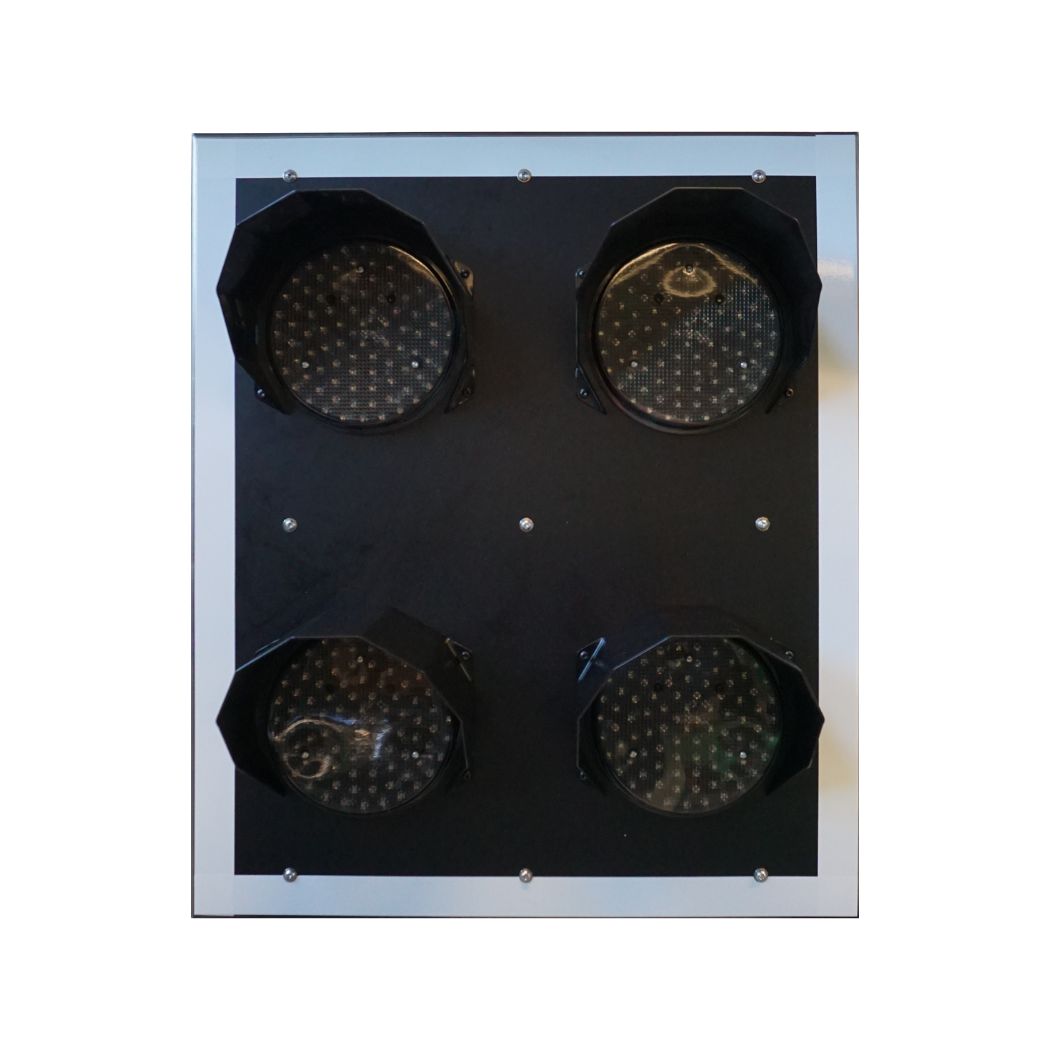

This traffic light measures 680 mm wide by 800 mm high, and is only 3 mm thick (excluding visors).

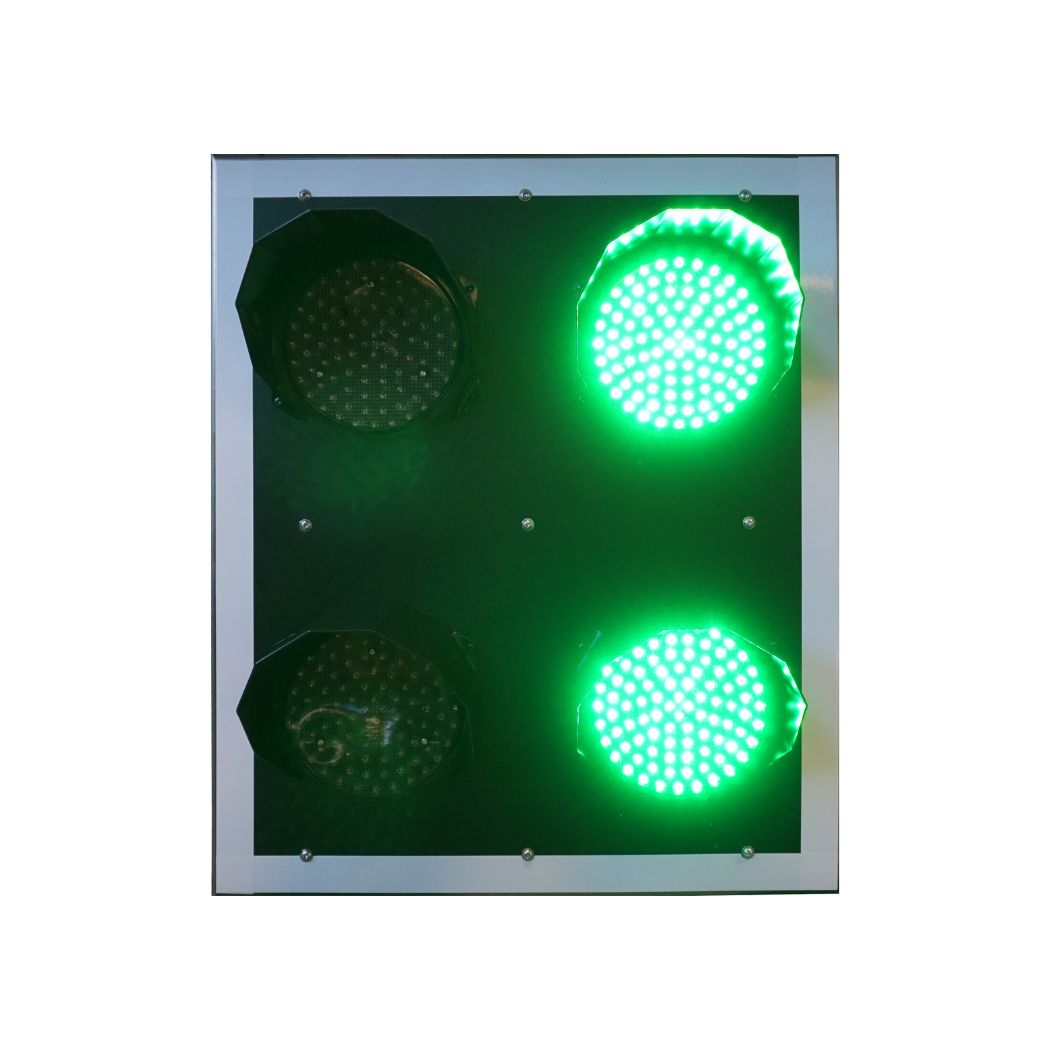

Four 200 mm diameter LED lights are arranged on this aluminum plate : two red lights on the left and two green lights on the right.

Each lens contains 95 high-intensity LEDs for high visual impact. The flashing mode differs depending on the light : the red lights are steady and the green lights can be steady or flashing.

Mounting, Power supply and Control

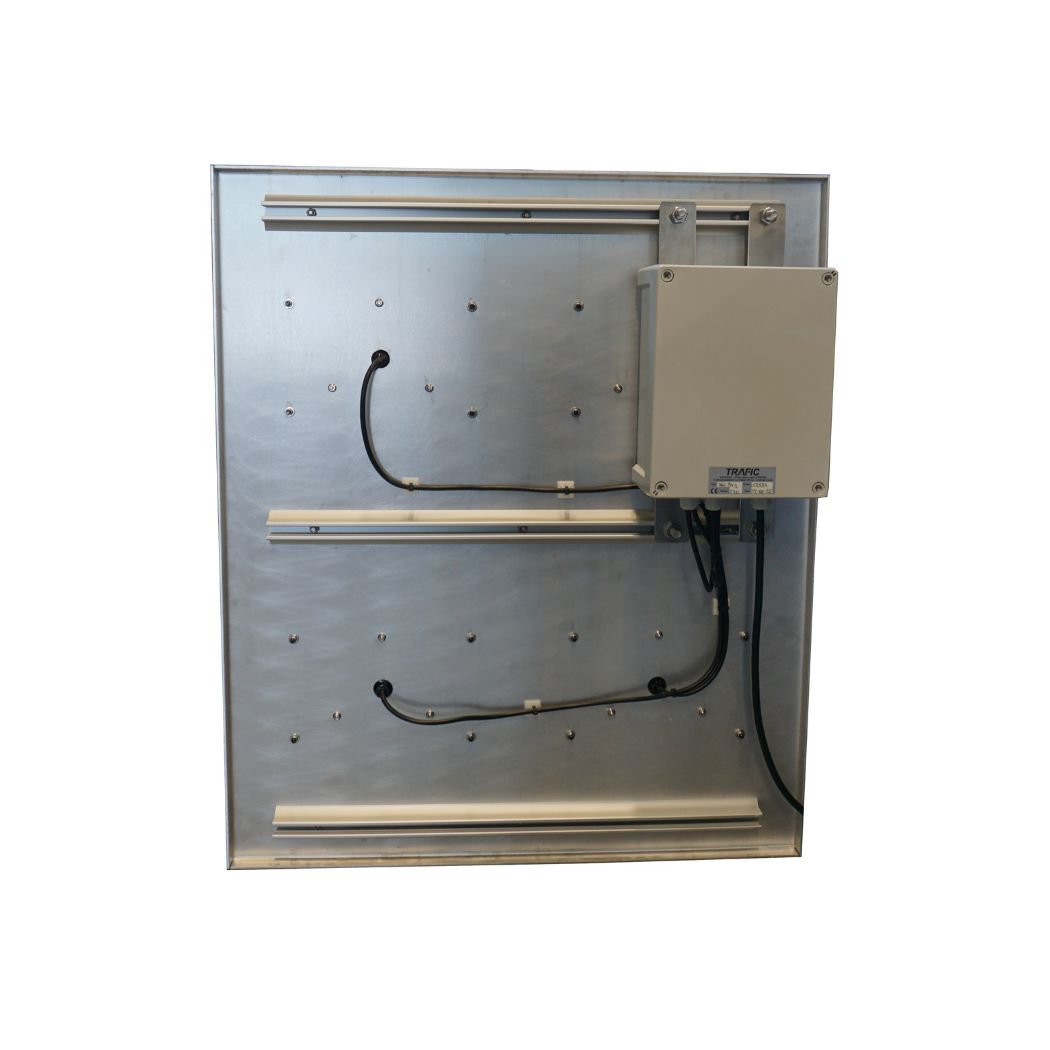

This port traffic light is mounted using 3 rails located on its back. It is powered by 230V with a 5m cable included.

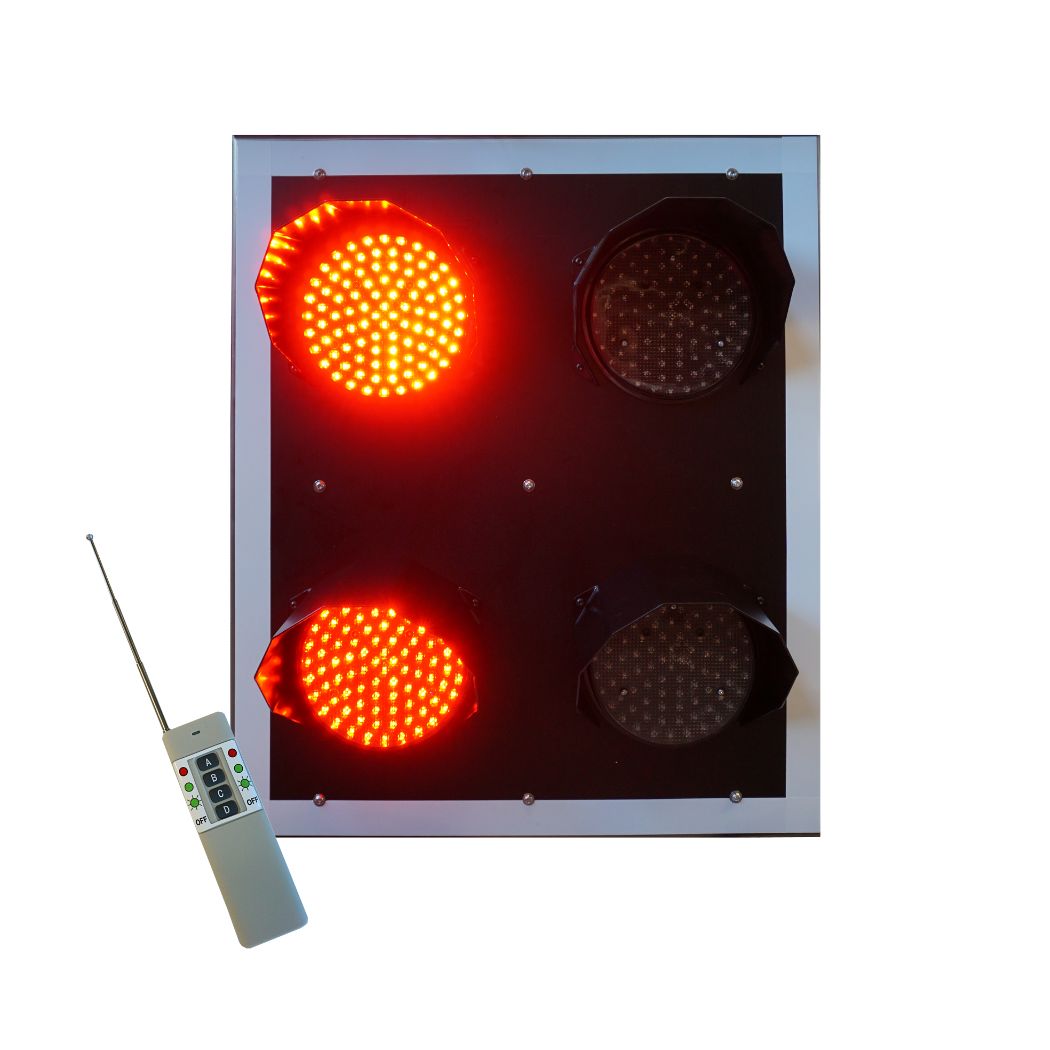

A long-range remote control is provided so you can control the light remotely. It has 4 buttons:

• button 1 : 2 steady red lights
• button 2 : 2 steady green lights
• button 3 : 2 flashing green lights
• button 4 : turn off
