Canal Lock Signal with 6 lights

What is the purpose of this lock light ?

Some locks are used in one direction and then the other. The lights clearly indicate who can enter, when to wait, and which side is authorized to pass.

In some locks, combinations can give different instructions, such as:

• 3 red lights: no entry (lock occupied, gate closed, etc.)
• 2 red lights + 1 green light: wait, maneuver in progress, etc.
• 3 green lights: entry permitted
• 2 green lights only: partial authorization (e.g., restricted access to certain boats)

Highly powerful equipment

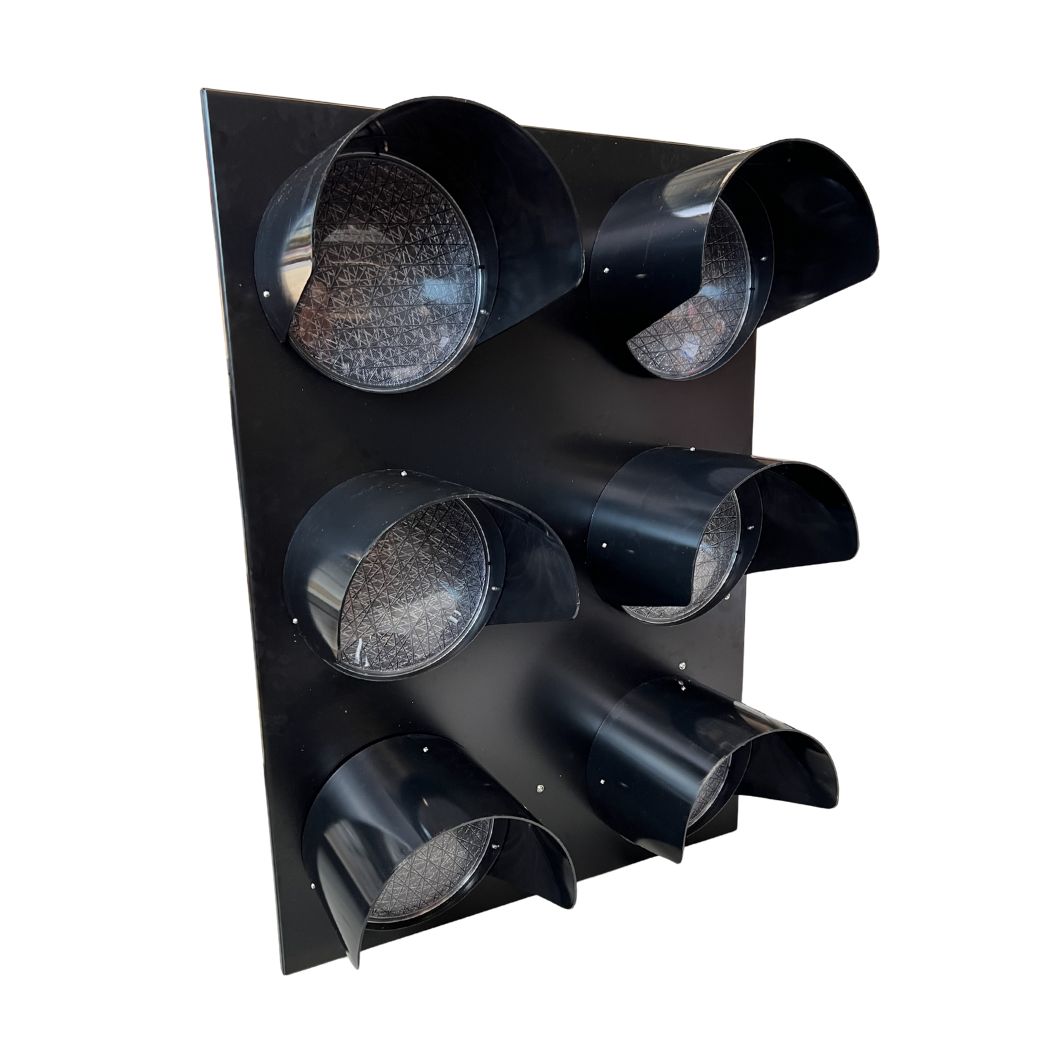

This lock light measures 900 mm wide by 1260 mm high, and approximately 280 mm thick with the visors.

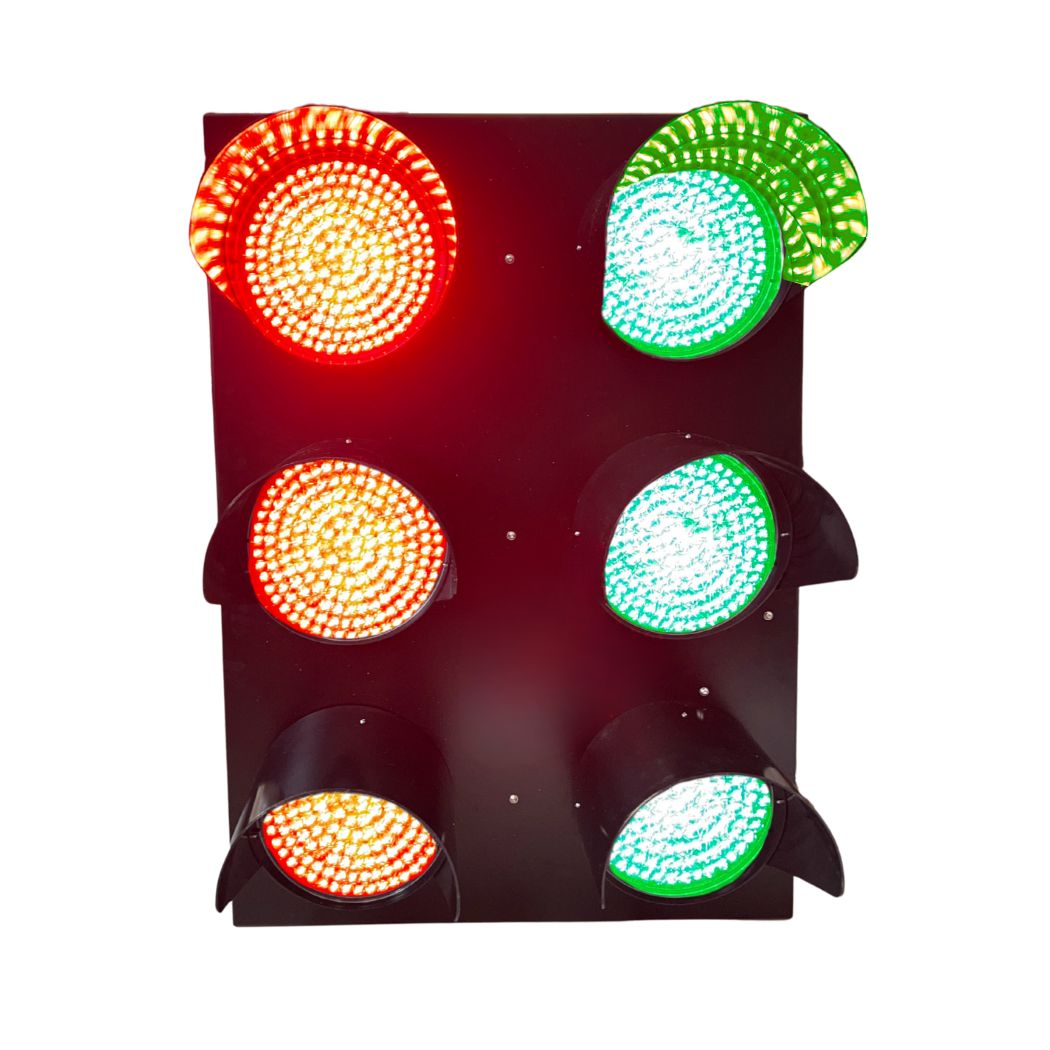

Six 300 mm diameter LED lights are arranged on this aluminum sheet: three red lights on the left and three green lights on the right. Each lens contains high-intensity LEDs for high visual impact.

The flashing mode differs depending on the lights and your needs: steady or flashing.

Mounting and power supply

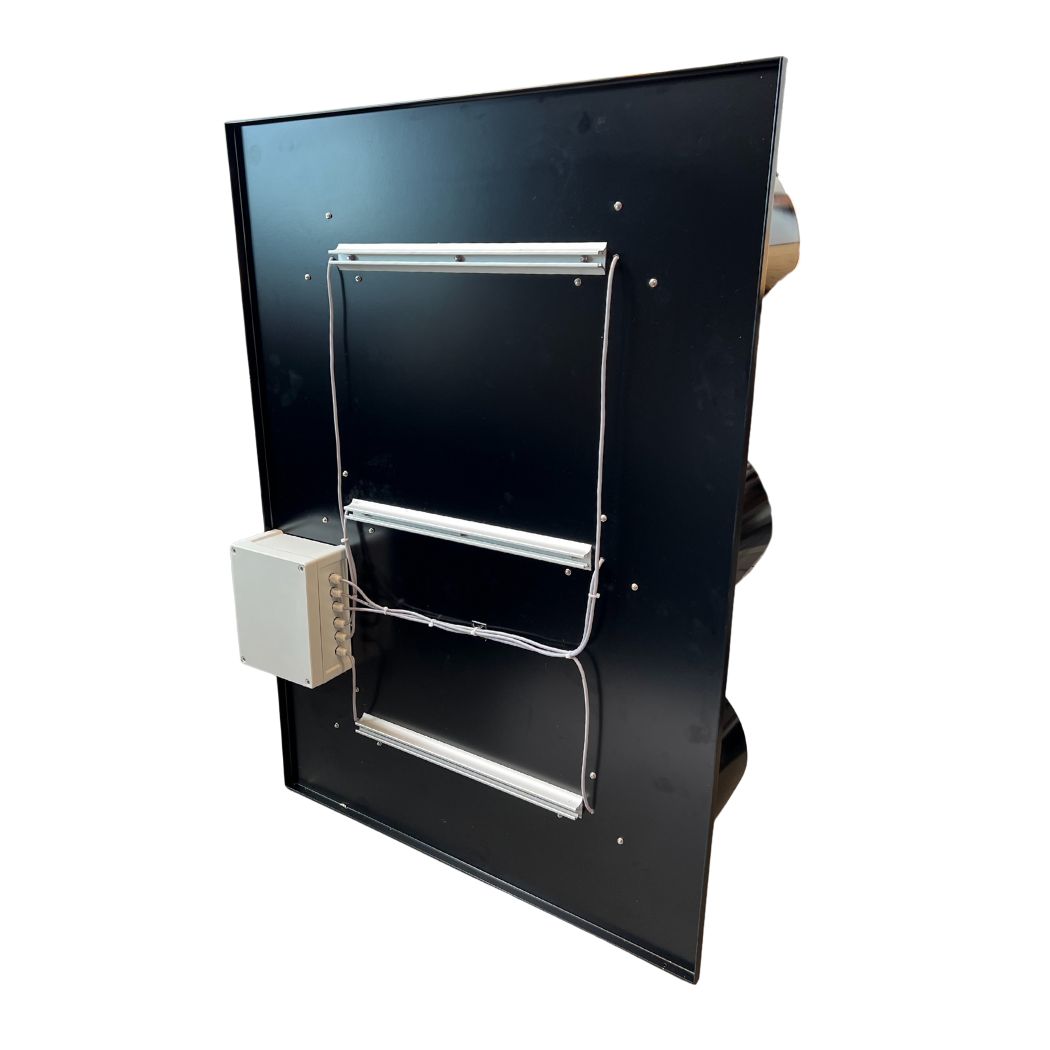

The light can be mounted on a pole using rear rails with clamps or brackets. Poles and clamps are sold separately.

The power supply is 24V or 230V.
