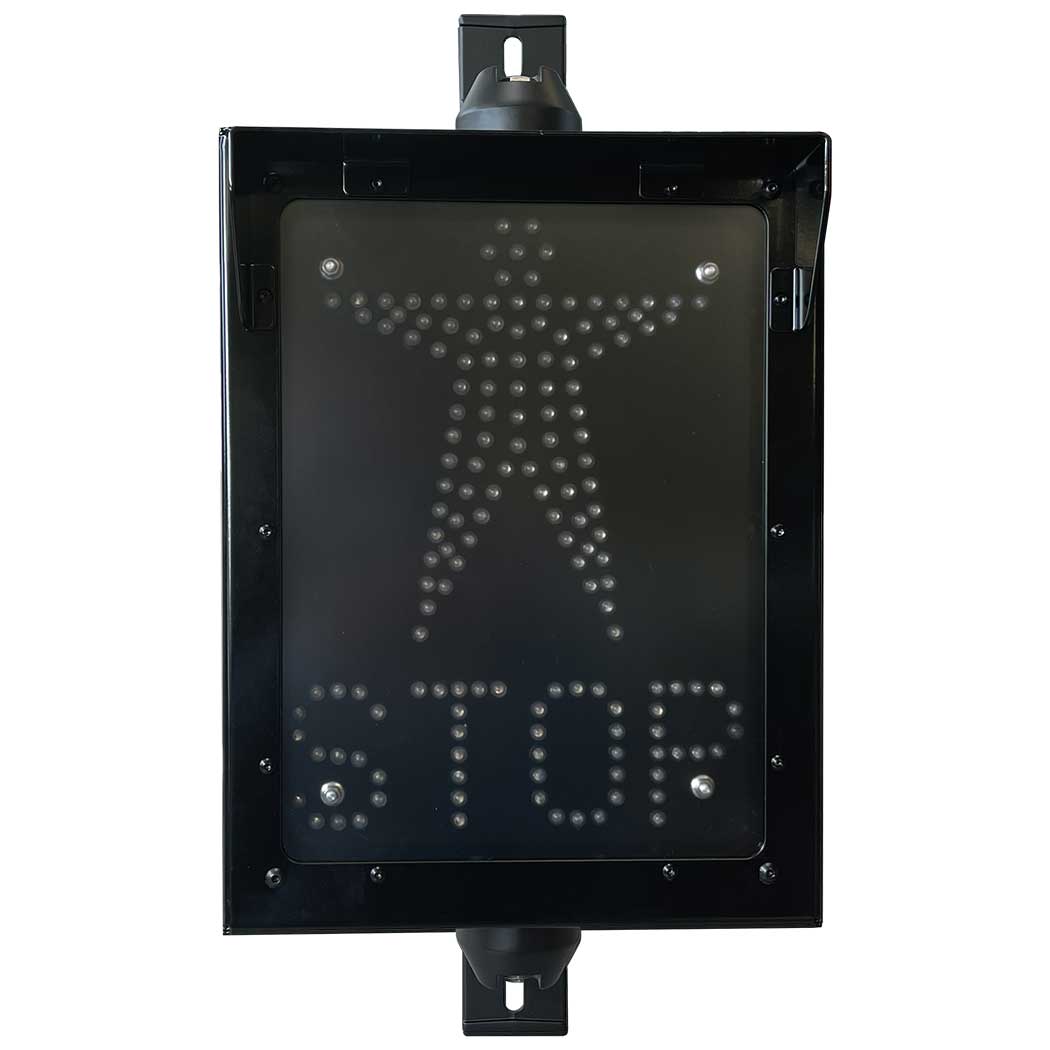

Meaning of this pedestrian traffic light
When illuminated, it instructs pedestrians not to cross a lane reserved for vehicles operating regular public transport services (trams, trains, buses…).

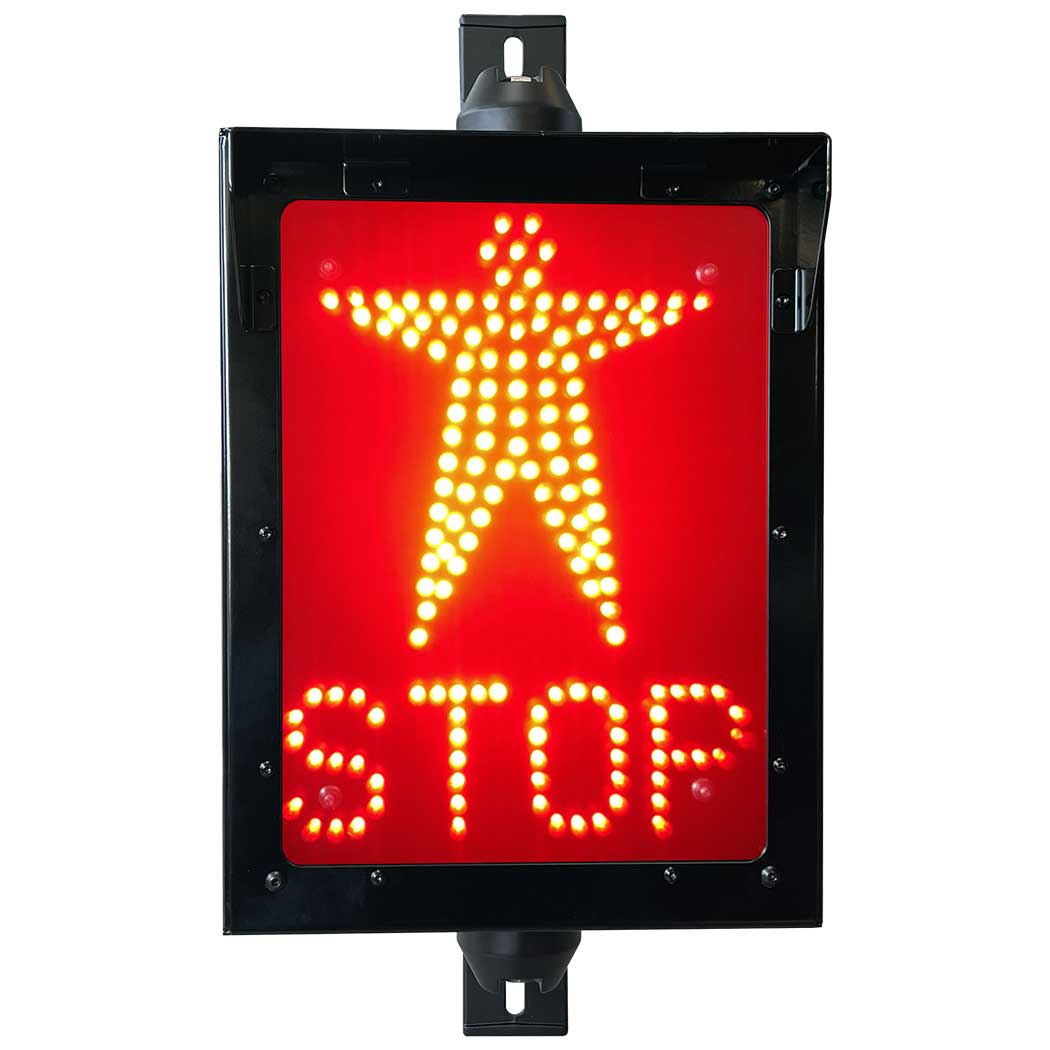

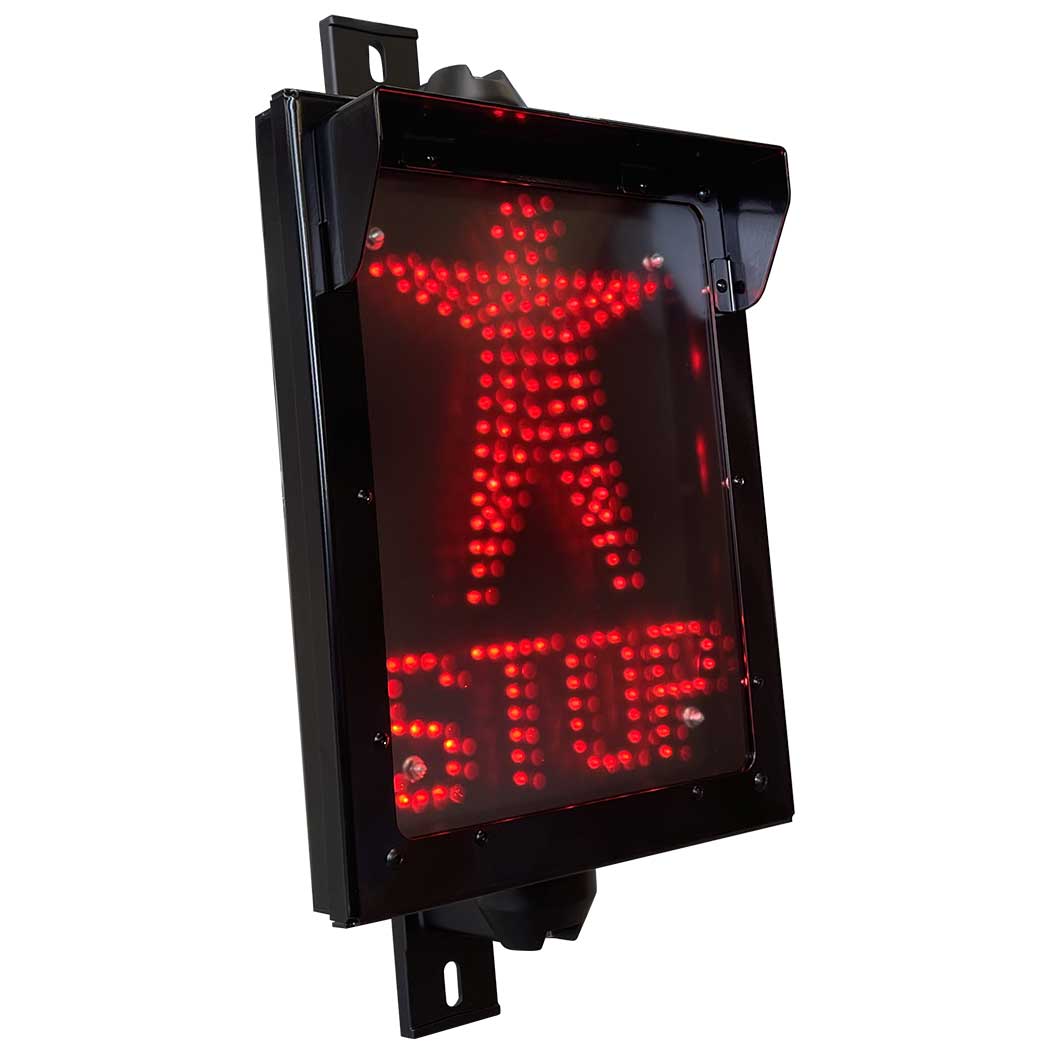

The pedestrian pictogram remains continuously illuminated, while the word “STOP” flashes. The interval between two successive illuminations must be at least 6 seconds.
A custom-made product
Our tramway signals and traffic lights are custom-made products with excellent brightness for optimal visibility.
We offer customization of these products to meet the specific needs of each network and can design personalized signals upon request. You can choose the symbol, LED color, and power supply.
Technicals specifications
- Dimensions : H370mm x W280mm x T132mm
- Mounting distance : approximately 380mm
- Aluminum housing and visor (polycarbonate optional)
- High-intensity red LEDs
- Flashing mode
- 24V or 230V power supply

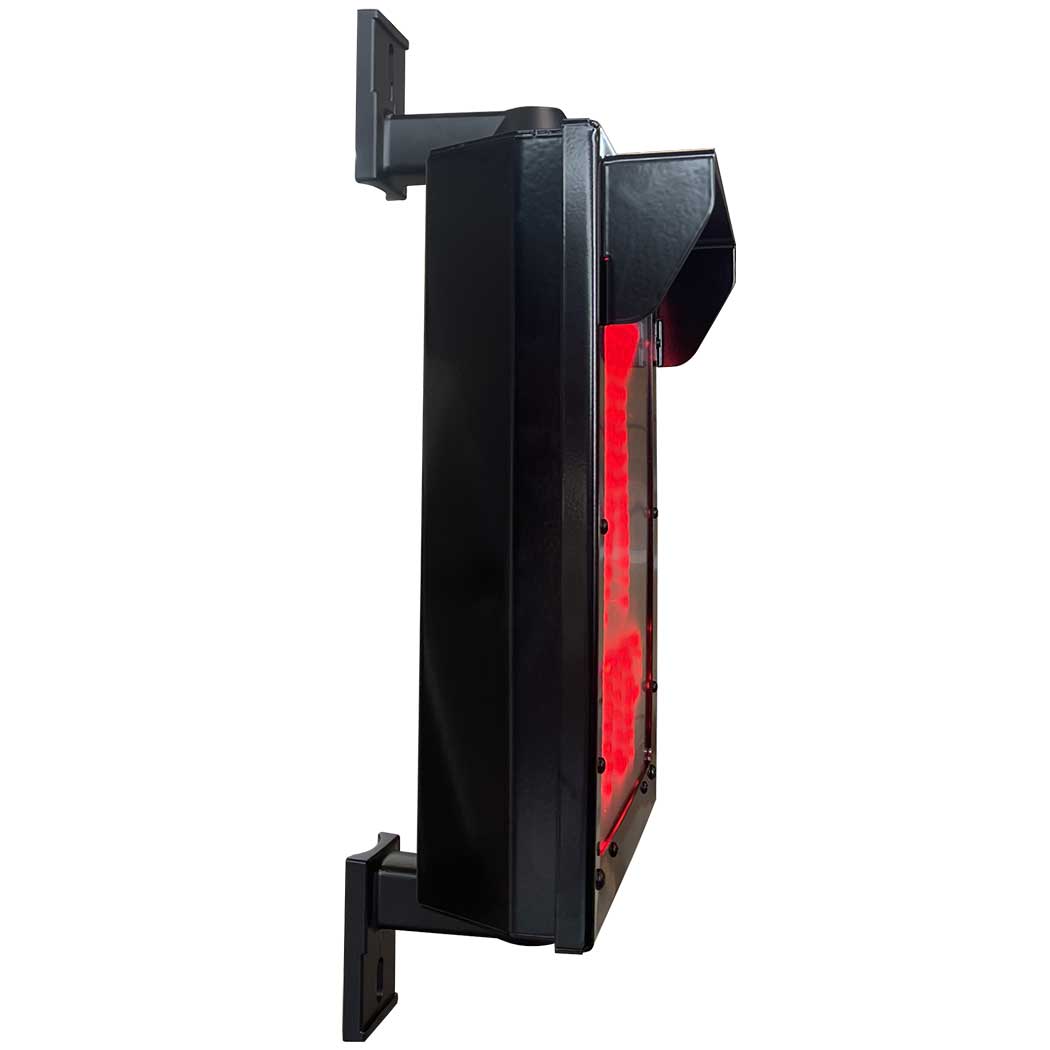

- Mounting via 2 adjustable and orientable brackets
- IP55 and IK08
